GT4V

GT4V

Are you looking for high performance Endmills ?
Our GT4V range gives higher cutting speeds and longer tool life.

Make An EnquiryView Specs

High Performance Endmills

Variable, Flute, Helix & Rake: The Geometry 4 Flute Endmills from A&S Tooling.

Our very own GT4V range is competitively priced against leading brands, and provides exceptional performance. The tools are formed from submicron grain solid carbide and feature a multilayer Nano composite TiSiN coating for maximum durability. They are specially designed to provide excellent results on titanium and exotic alloys, as well as hard and abrasive work piece materials. Ideal for centre cutting - Plunge and Ramp, and benefitting from corner edge protection.

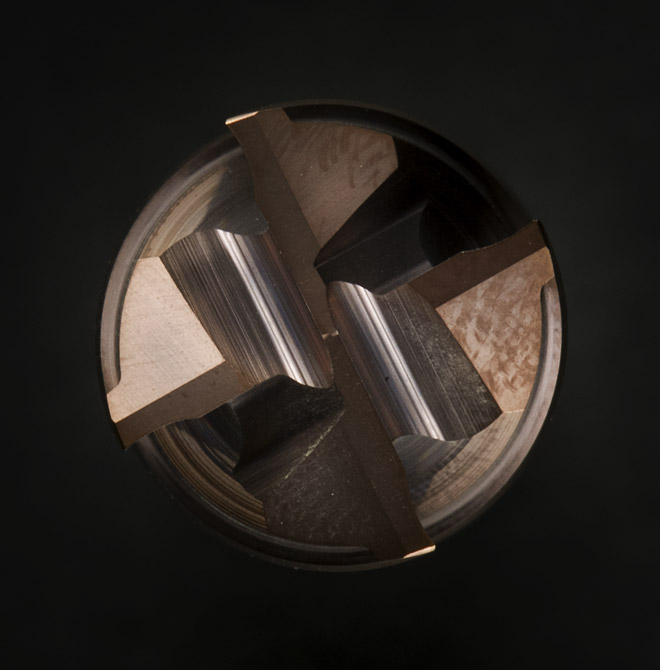

gt4v img 1

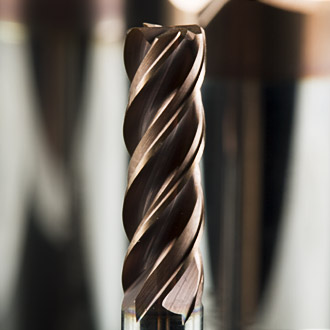

gt4v img 2

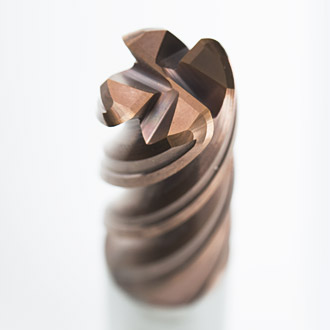

gt4v img 3 2
gt4v img 4

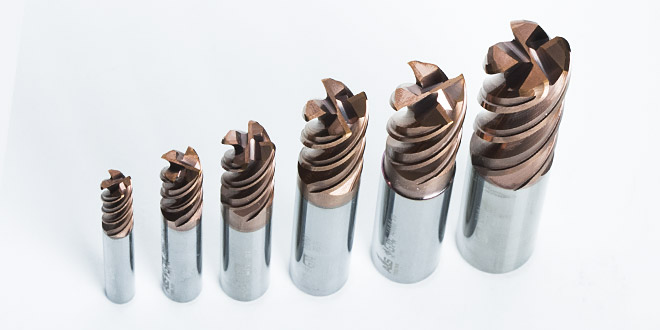

Above: Shows our TiSiN coating along with sample range of radius sizes available

GT4V Range Specifications

tool
Cutting Diameter
D1 - mm
Length of Cut
L2 - mm
Overall Length
L1 - mm
Shank Diameter
D2 - mm
Corner Radius
R - mm
Cutting Diameter
D1 - mm
6
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
57
Shank Diameter
D2 - mm
6
Corner Radius
R - mm
0.25 (standard)

Cutting Diameter
D1 - mm
6
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
57
Shank Diameter
D2 - mm
6
Corner Radius
R - mm
0.50

Cutting Diameter
D1 - mm
6
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
57
Shank Diameter
D2 - mm
6
Corner Radius
R - mm
0.75

Cutting Diameter
D1 - mm
6
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
57
Shank Diameter
D2 - mm
6
Corner Radius
R - mm
1.00

Cutting Diameter
D1 - mm
8
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
63
Shank Diameter
D2 - mm
8
Corner Radius
R - mm
0.25 (standard)

Cutting Diameter
D1 - mm
8
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
63
Shank Diameter
D2 - mm
8
Corner Radius
R - mm
0.50

Cutting Diameter
D1 - mm
8
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
63
Shank Diameter
D2 - mm
8
Corner Radius
R - mm
0.75

Cutting Diameter
D1 - mm
8
Length of Cut
L2 - mm
19
Overall Length
L1 - mm
63
Shank Diameter
D2 - mm
8
Corner Radius
R - mm
1.00

Cutting Diameter
D1 - mm
10
Length of Cut
L2 - mm
22
Overall Length
L1 - mm
72
Shank Diameter
D2 - mm
10
Corner Radius
R - mm
0.25 (standard)

Cutting Diameter
D1 - mm
10
Length of Cut
L2 - mm
22
Overall Length
L1 - mm
72
Shank Diameter
D2 - mm
10
Corner Radius
R - mm
0.50

Cutting Diameter
D1 - mm
10
Length of Cut
L2 - mm
22
Overall Length
L1 - mm
72
Shank Diameter
D2 - mm
10
Corner Radius
R - mm
0.75

Cutting Diameter
D1 - mm
10
Length of Cut
L2 - mm
22
Overall Length
L1 - mm
72
Shank Diameter
D2 - mm
10
Corner Radius
R - mm
1.00

Cutting Diameter
D1 - mm
10
Length of Cut
L2 - mm
22
Overall Length
L1 - mm
72
Shank Diameter
D2 - mm
10
Corner Radius
R - mm
1.50

Cutting Diameter
D1 - mm
12
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
12
Corner Radius
R - mm
0.25 (standard)

Cutting Diameter
D1 - mm
12
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
12
Corner Radius
R - mm
0.50

Cutting Diameter
D1 - mm
12
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
12
Corner Radius
R - mm
0.75

Cutting Diameter
D1 - mm
12
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
12
Corner Radius
R - mm
1.00

Cutting Diameter
D1 - mm
12
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
12
Corner Radius
R - mm
1.50

Cutting Diameter
D1 - mm
12
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
12
Corner Radius
R - mm
1.75

Cutting Diameter
D1 - mm
12
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
12
Corner Radius
R - mm
2.00

Cutting Diameter
D1 - mm
14
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
14
Corner Radius
R - mm
0.25 (standard)

Cutting Diameter
D1 - mm
14
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
14
Corner Radius
R - mm
0.50

Cutting Diameter
D1 - mm
14
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
14
Corner Radius
R - mm
1.00

Cutting Diameter
D1 - mm
14
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
14
Corner Radius
R - mm
1.50

Cutting Diameter
D1 - mm
14
Length of Cut
L2 - mm
26
Overall Length
L1 - mm
83
Shank Diameter
D2 - mm
14
Corner Radius
R - mm
2.00

Cutting Diameter
D1 - mm
16
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
92
Shank Diameter
D2 - mm
16
Corner Radius
R - mm
0.25 (standard)

Cutting Diameter
D1 - mm
16
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
92
Shank Diameter
D2 - mm
16
Corner Radius
R - mm
0.50

Cutting Diameter
D1 - mm
16
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
92
Shank Diameter
D2 - mm
16
Corner Radius
R - mm
1.00

Cutting Diameter
D1 - mm
16
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
92
Shank Diameter
D2 - mm
16
Corner Radius
R - mm
1.50

Cutting Diameter
D1 - mm
16
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
92
Shank Diameter
D2 - mm
16
Corner Radius
R - mm
2.00

Cutting Diameter
D1 - mm
16
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
92
Shank Diameter
D2 - mm
16
Corner Radius
R - mm
3.00

Cutting Diameter
D1 - mm
20
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
104
Shank Diameter
D2 - mm
20
Corner Radius
R - mm
0.25 (standard)

Cutting Diameter
D1 - mm
20
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
104
Shank Diameter
D2 - mm
20
Corner Radius
R - mm
0.50

Cutting Diameter
D1 - mm
20
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
104
Shank Diameter
D2 - mm
20
Corner Radius
R - mm
1.00

Cutting Diameter
D1 - mm
20
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
104
Shank Diameter
D2 - mm
20
Corner Radius
R - mm
2.00

Cutting Diameter
D1 - mm
20
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
104
Shank Diameter
D2 - mm
20
Corner Radius
R - mm
3.00

Cutting Diameter
D1 - mm
20
Length of Cut
L2 - mm
40
Overall Length
L1 - mm
104
Shank Diameter
D2 - mm
20
Corner Radius
R - mm
4.00


Key Benefits

  • Optimised Performance
  • Increased Tool Life
  • Minimum Tool Deflection
  • Improved Surface Finish
  • Aids Chip Evacuation

Download: GT4V Range Specifications

Download our handy PDF for full specifications; diameters, lengths, shank and the various corner radius' available.

Download

Case Study: GT4V

Read how our GT4V is delivering outstanding results within the automotive sector.

Read Case Study
